ECG – ELECTROCARDIOGRAPH


Zoncare 12 Channel Diagnostic ECG #iMac120

The Zoncare iMac120 is a 12 channel / 12 lead ECG with a large touchscreen display, A4 printer and advanced diagnostic software including wifi connection. The iMac120 is an intelligent ECG that analyses the ECG rhythm and provides an interpretation for the result. The ECG includes:

  • USB interface for ECG data download or Wifi
  • Memory stores 1000 patient ECG records
  • 210mm wide thermal A4 printer
  • 275mm HD LED touchscreen display
  • Built in rechargeable Li-ion battery & AC power connection
  • Pacemaker & Defibrillator detection
  • Heart rate variability analysis
  • Digital filtering, baseline drift & interference reduction
  • Automatic / Manual and lead off alerts
  • Net weight 4.6kg
  • Glasgow ECG analysis algorithm

Sonoscape 12P Channel Diagnostic ECG #IE12P

Sonoscape 15 Channel ECG #IE15

The IE15 ECG is an easy to use laptop style portable 15 channel ECG for extended diagnostic interpretation. Fast accurate and stable this ECG features a built in printer, screen display & rechargeable battery operation.

  • 320mm touchscreen display
  • 210mm thermal printer
  • Voice prompts
  • Built in rechargeable Li-ion battery & AC power connection
  • 12 – 15 lead simultaneous operation
  • Automatic measurement & interpretation
  • Digital filtering, baseline drift & interference reduction
  • Automatic / Manual and lead off alerts
  • Stores 1500 ECG records
  • SD Card storage & transfer to pc
  • Net weight 5.0kg
  • Dimensions 360mm (L) x 325mm (W) x 380mm (H)

Sonoscape IE6 6 Channel ECG

The IE6 ECG is a tablet styled portable 12 lead 6 channel ECG with built in printer, screen display & rechargeable battery operation.

  • SD Card & USB interface for storage & download
  • Built in 210mm touchscreen display
  • 112mm thermal printer
  • Built in rechargeable Li-ion battery & AC power connection
  • 12 lead simultaneous operation
  • Automatic measurement & interpretation
  • Digital filtering, baseline drift & interference reduction
  • Automatic / Manual and lead off alerts
  • Internal memory stores 200 ECG records
  • Net weight 3.5kg
  • Dimensions 290mm (L) x 245mm (W) x 99mm (H)

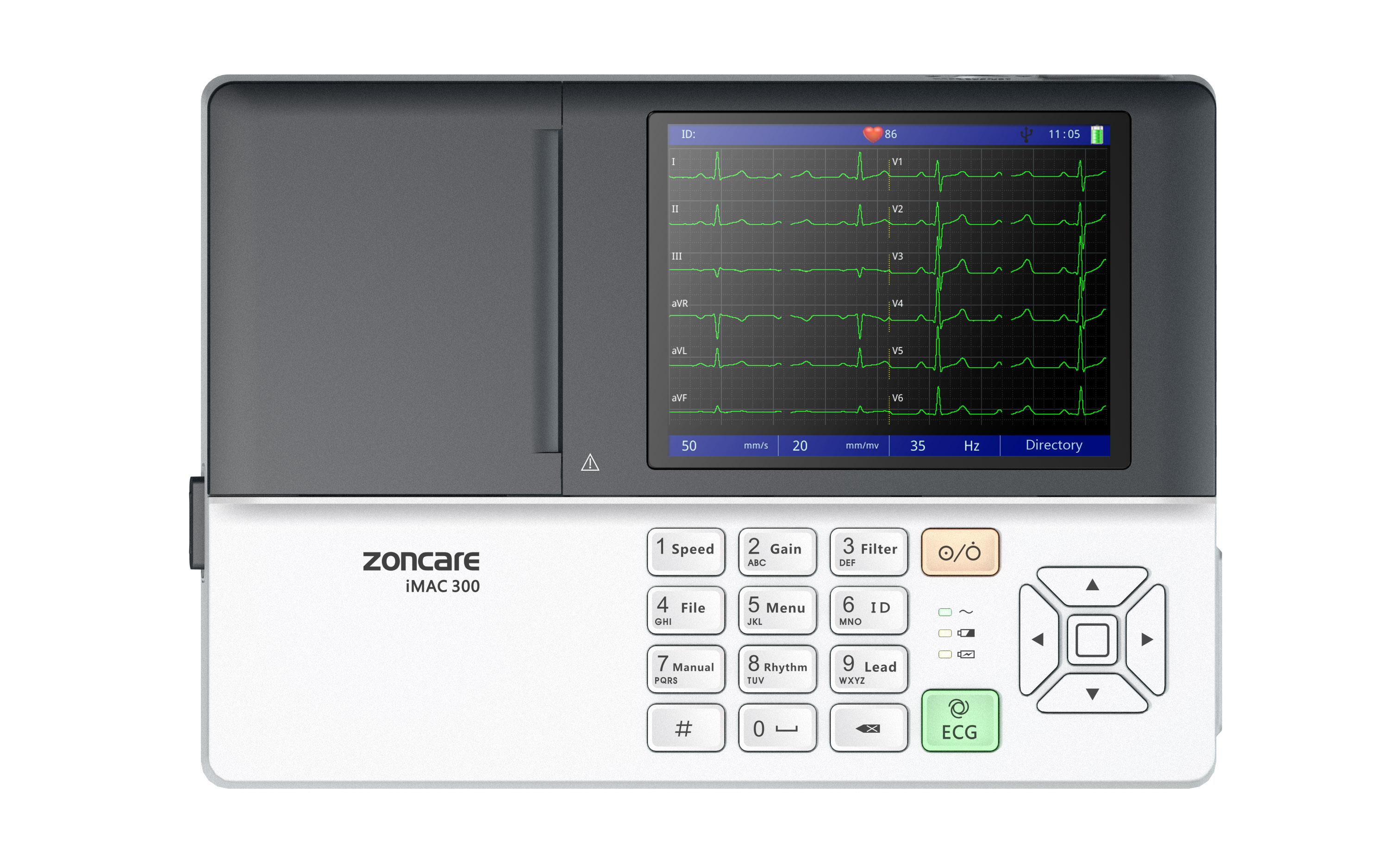

Zoncare iMac300 3 Channel ECG

The iMac300 ECG is an easy to use, compact, cost effective portable 12 lead 3 channel ECG with a built in printer, screen display & rechargeable battery operation. It is an interpretative ECG and provides an analysis of the ECG recording upon completion.

The iMac300 ECG includes:

  • USB or SD Card for storage & download of the ECG records
  • Memory storage of 1000 patient ECG records
  • Built in 130mm LCD screen display
  • Thermal printer
  • Built in rechargeable Li-ion battery & AC power connection
  • 12 lead simultaneous operation
  • University Of Glasgow Interpretation Algorithm
  • Digital filtering, baseline drift & interference reduction
  • Automatic / Manual and lead off alerts
  • Net weight 1.2kg
  • Dimensions 268mm (L) x 206mm (W) x 67mm (H)

PC based Diagnostic ECG

The Edan SE1515 pc based ECG effectively turns your computer into a powerfulPC Based ii-417 12 lead ECG machine capable of recording real time ECG rhythms. The software can be set up on multiple computers within a practice and the ECG lead connects quickly and easily through a USB port. The Edan diagnostic software allows you to save & store the ECG for transferring to patient records, printing out and analyzing the data.

The Edan SE1515 includes:

  • USB connection to your pc or laptop
  • Compatible with all windows operating systems
  • No other power connection required
  • Live ECG trace on your screen
  • ECG can be viewed and saved in real time
  • Includes 12 lead patient cable, clips & all leads
  • Very easy to setup with software installation disc
  • Meets EN IEC 60601-1-1 / EN IEC 60601-1-4
+ Zoncare 12 Channel Diagnostic ECG #iMac120

Zoncare 12 Channel Diagnostic ECG #iMac120

The Zoncare iMac120 is a 12 channel / 12 lead ECG with a large touchscreen display, A4 printer and advanced diagnostic software including wifi connection. The iMac120 is an intelligent ECG that analyses the ECG rhythm and provides an interpretation for the result. The ECG includes:

  • USB interface for ECG data download or Wifi
  • Memory stores 1000 patient ECG records
  • 210mm wide thermal A4 printer
  • 275mm HD LED touchscreen display
  • Built in rechargeable Li-ion battery & AC power connection
  • Pacemaker & Defibrillator detection
  • Heart rate variability analysis
  • Digital filtering, baseline drift & interference reduction
  • Automatic / Manual and lead off alerts
  • Net weight 4.6kg
  • Glasgow ECG analysis algorithm
+ Sonoscape 12P Channel Diagnostic ECG #IE12P

Sonoscape 12P Channel Diagnostic ECG #IE12P

+ Sonoscape 15 Channel ECG #IE15

Sonoscape 15 Channel ECG #IE15

The IE15 ECG is an easy to use laptop style portable 15 channel ECG for extended diagnostic interpretation. Fast accurate and stable this ECG features a built in printer, screen display & rechargeable battery operation.

  • 320mm touchscreen display
  • 210mm thermal printer
  • Voice prompts
  • Built in rechargeable Li-ion battery & AC power connection
  • 12 – 15 lead simultaneous operation
  • Automatic measurement & interpretation
  • Digital filtering, baseline drift & interference reduction
  • Automatic / Manual and lead off alerts
  • Stores 1500 ECG records
  • SD Card storage & transfer to pc
  • Net weight 5.0kg
  • Dimensions 360mm (L) x 325mm (W) x 380mm (H)
+ Sonoscape IE6 6 Channel ECG

Sonoscape IE6 6 Channel ECG

The IE6 ECG is a tablet styled portable 12 lead 6 channel ECG with built in printer, screen display & rechargeable battery operation.

  • SD Card & USB interface for storage & download
  • Built in 210mm touchscreen display
  • 112mm thermal printer
  • Built in rechargeable Li-ion battery & AC power connection
  • 12 lead simultaneous operation
  • Automatic measurement & interpretation
  • Digital filtering, baseline drift & interference reduction
  • Automatic / Manual and lead off alerts
  • Internal memory stores 200 ECG records
  • Net weight 3.5kg
  • Dimensions 290mm (L) x 245mm (W) x 99mm (H)
+ Zoncare iMac300 3-Channel ECG

Zoncare iMac300 3 Channel ECG

The iMac300 ECG is an easy to use, compact, cost effective portable 12 lead 3 channel ECG with a built in printer, screen display & rechargeable battery operation. It is an interpretative ECG and provides an analysis of the ECG recording upon completion.

The iMac300 ECG includes:

  • USB or SD Card for storage & download of the ECG records
  • Memory storage of 1000 patient ECG records
  • Built in 130mm LCD screen display
  • Thermal printer
  • Built in rechargeable Li-ion battery & AC power connection
  • 12 lead simultaneous operation
  • University Of Glasgow Interpretation Algorithm
  • Digital filtering, baseline drift & interference reduction
  • Automatic / Manual and lead off alerts
  • Net weight 1.2kg
  • Dimensions 268mm (L) x 206mm (W) x 67mm (H)
+ PC based Diagnostic ECG

PC based Diagnostic ECG

The Edan SE1515 pc based ECG effectively turns your computer into a powerfulPC Based ii-417 12 lead ECG machine capable of recording real time ECG rhythms. The software can be set up on multiple computers within a practice and the ECG lead connects quickly and easily through a USB port. The Edan diagnostic software allows you to save & store the ECG for transferring to patient records, printing out and analyzing the data.

The Edan SE1515 includes:

  • USB connection to your pc or laptop
  • Compatible with all windows operating systems
  • No other power connection required
  • Live ECG trace on your screen
  • ECG can be viewed and saved in real time
  • Includes 12 lead patient cable, clips & all leads
  • Very easy to setup with software installation disc
  • Meets EN IEC 60601-1-1 / EN IEC 60601-1-4

Emech Medical Supplies

Please feel free to call us 0800 436 324 / 1800 043 324 or email us sales@emechmedical.com for a comprehensive information pack and pricing on your requirements.
