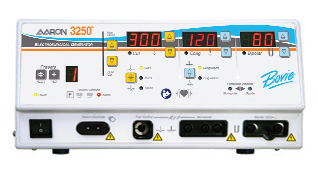

The Aaron A3250 is a multipurpose electro surgical generator suited to a modern
operating room or surgical center. It features 300 watts of cutting power along
with blend, coagulate, fulgurate and bi-polar modes. The A3250 as with all the Aaron
range comes ready for use with hand-piece, electrodes, wall mounting and an instruction
DVD so that it is immediately ready for use.

Features

The Aaron 3250™ Generator offers you up to 300 watts in cut, blended cut and pinpoint
coagulation mode. Power control at the hand-piece or via the rotary knob adjustable in
0.1 watt increments and 6 available preset modes make this very easy and efficient to use.
The A3250 also incorporates extra safety features such as self testing circuits, isolated
circuitry, audible tones, discreet outputs and Bovie neutral electrode monitoring.

Good News For Foot Control

If you need to use a foot control just plug it in. There is no need to purchase an
expensive separate hand-piece for foot control situations. The same auto-clavable
hand-piece that normally operates the unit allows for foot control activation and still
retains the ability to activate the unit or adjust the output power via the up/down buttons.

The Aaron 3250 has passed the following safety standards:

CSA C22.2 NO 601.1-M90,

UL 2601-1-UL,

IEC 60601-2-2 (1998-90),

CENELEC EN 60601-1-2,

CENELEC EN 60601-2-2,

FCC PART 15 Class A.

Digital Error Detection

Means unsurpassed safety for you and your patient. The Aaron 3250 continuously monitors every aspect of the Aaron 3250’s output. At the sign of any problem the machine instantly disables the output and displays the appropriate error code on the display. The discrete output design enhances safety by only allowing one output to be activated at any given time. For additional safety the A3250 has totally separate bi-polar controls, dispersive electrode fault alarms and is designed with an isolated RF output.

Output Power

Cut – 300 Watts

Blend – 200 Watts

Pinpoint Coagulation – 120 Watts

Fulguration – 80 Watts

Bipolar – 80 Watts

Line Voltage

A3250-220: 240 VAC ± 10%

Output Frequency

350 – 800 kHz

Line Frequency

50-60 Hz

Dimensions and Weight

Width: 31.10 cm

Height: 15.30 cm

Depth: 41.30 cm

Weight: 8.8 kg

Warranty

(Unit) – 2 years
