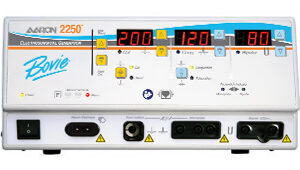

Aaron Bovie A2250 Electrosurgical Generator
Aaron Bovie A3250 Electrosurgical Generator
December 12, 2018
Cominox B Class Autoclave - SpeedyClave
Cominox B Class Autoclave – Speedyclave
December 16, 2018

Aaron Bovie Derm 102

The Aaron Derm 102 Diathermy is a new cost effective 10 watt high frequency Diathermy and Desiccator designed to perform in house minor skin procedures including removal of skin tags, benign lesions and premalignant lesions. Derm 102 has all of the functionality of a larger diathermy with power control on the pencil handle and the option of both mono-polar and bi-polar mode. The Bovie Derm 102 diathermy as with all the Aaron range comes ready for use with hand-piece, electrodes, wall mounting bracket and an instruction DVD so that it is immediately ready for use.

Category:

Change Power In One Easy Step

The Derm 102’s digital power control system allows you to change from low to high by simply pushing the up/down buttons on the hand-piece or rotating the power control knob.

Good News For Foot Control

If you need to use a foot control just plug it in. There is no need to purchase an expensive separate hand-piece for foot control situations. The same auto-clavable hand-piece that normally operates the unit allows for foot control activation and still retains the ability to activate the unit or adjust the output power via the up/down buttons.

Built to the Required Standards

The Derm 101 diathermy has passed the following safety standards:

  • CSA C22.2 NO 601.1-M90
  • UL 2601-1-UL
  • IEC 60601-2-2 (1998-90)
  • CENELEC EN 60601-1-2
  • CENELEC EN 60601-2-2
  • FCC PART 15 Class A.
  • Digital Error Detection

Means unsurpassed safety for you and your patient. The Derm 102 continuously monitors every aspect of the output. At the first sign of any problem the machine instantly disables the output and displays the appropriate error code on the display.

Quality & Economy Without Compromise

A major part of the goal in designing the Derm 102 was to make our high quality Bovie range available in a low cost, lower wattage design. Derm 102 is the most affordable product in our range, we think that it is one of the best value options available with the pricing putting it within reach of all practices.

The Bovie 3-button Diathermy Handpiece — Better by Design, Inside and Out

The basic function of a 3-button handpiece is to allow the user to control power up/down and to activate the high frequency desiccator. It was our intention to give you much more than that, so we did! Inside we put a superbly engineered collet that firmly holds the electrode exactly where you place it. To top it off, we gold plated it for superior conductivity. The collet is attached to our circuit board, and the entire handpiece is encapsulated and formed in a high tech polymer that combines comfort for you with a sure grip.

The buttons on the handpiece have been designed for superior tactile feel and comfort. Lastly, we made it autoclavable so you can have sterility when you need it, and an easy to clean and durable handpiece all the way around.

Accessories

The Derm 102 is supplied with everything you need to get started including an instruction DVD, wall mounting bracket and a selection of sharp & blunt tips. Other optional accessories to consider include:

  • Bi-Polar forceps / cord / footpedal
  • Rolling Stand
  • Reusable or single use electrodes
  • Smoke Evacuator

Output Power

  • Monopolar – 10 Watts
  • Bipolar – 10 Watts

Line Voltage

D102-220: 240 VAC ± 10%

Output Frequency

550 kHz

Line Frequency

50-60 Hz

Dimensions and Weight

  • Width: 18.4 cm
  • Height: 6.9 cm
  • Depth: 20.8 cm
  • Weight: 1.4 kg

Warranty

(Unit) – 2 years
