Bariatric Bobath Plinth – Two Section

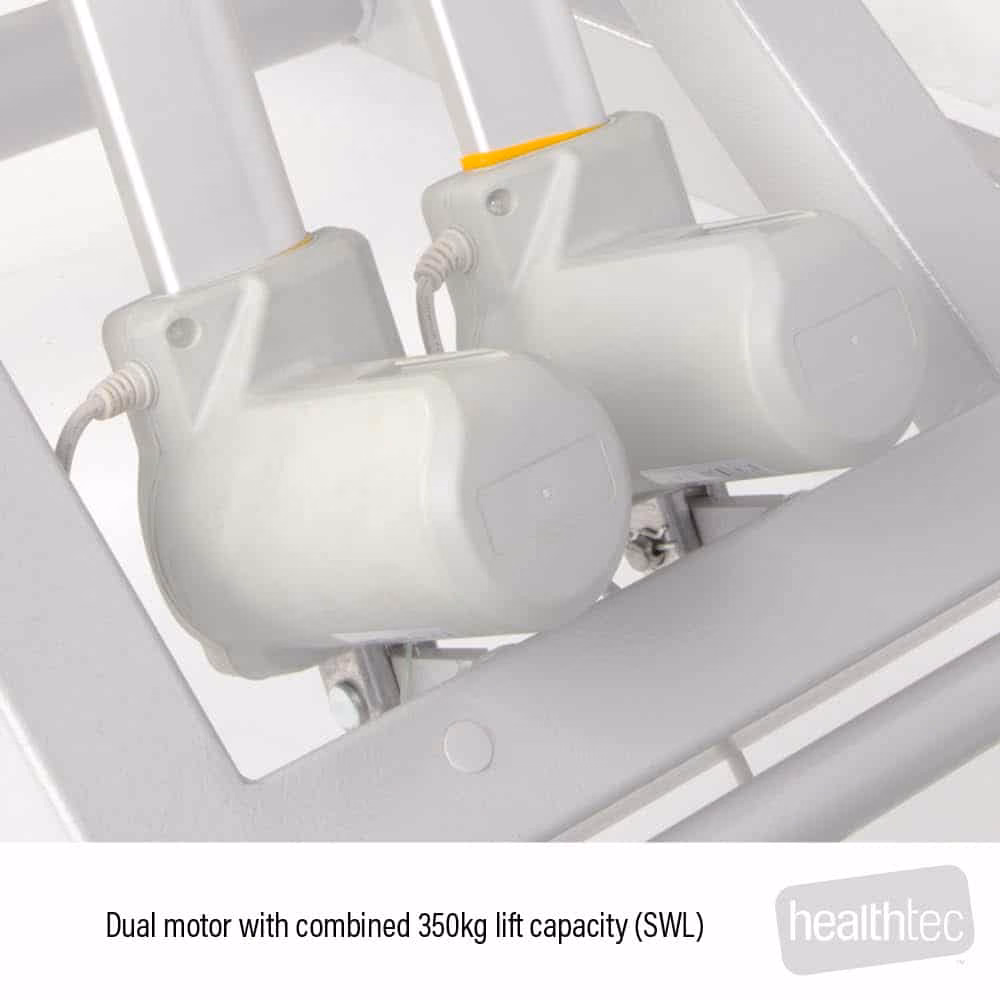

Our range of Bariatric Neurological Bobath Plinths are especially designed for treating patients with neurological conditions and are ideal for rehabilitation wards, and diagnostic clinics. The twin motors provide increased lifting capacity for Bariatric procedures.

Send us an enquiry

    Standard Chair Pricing Only, see options and accessories below to customise your table.

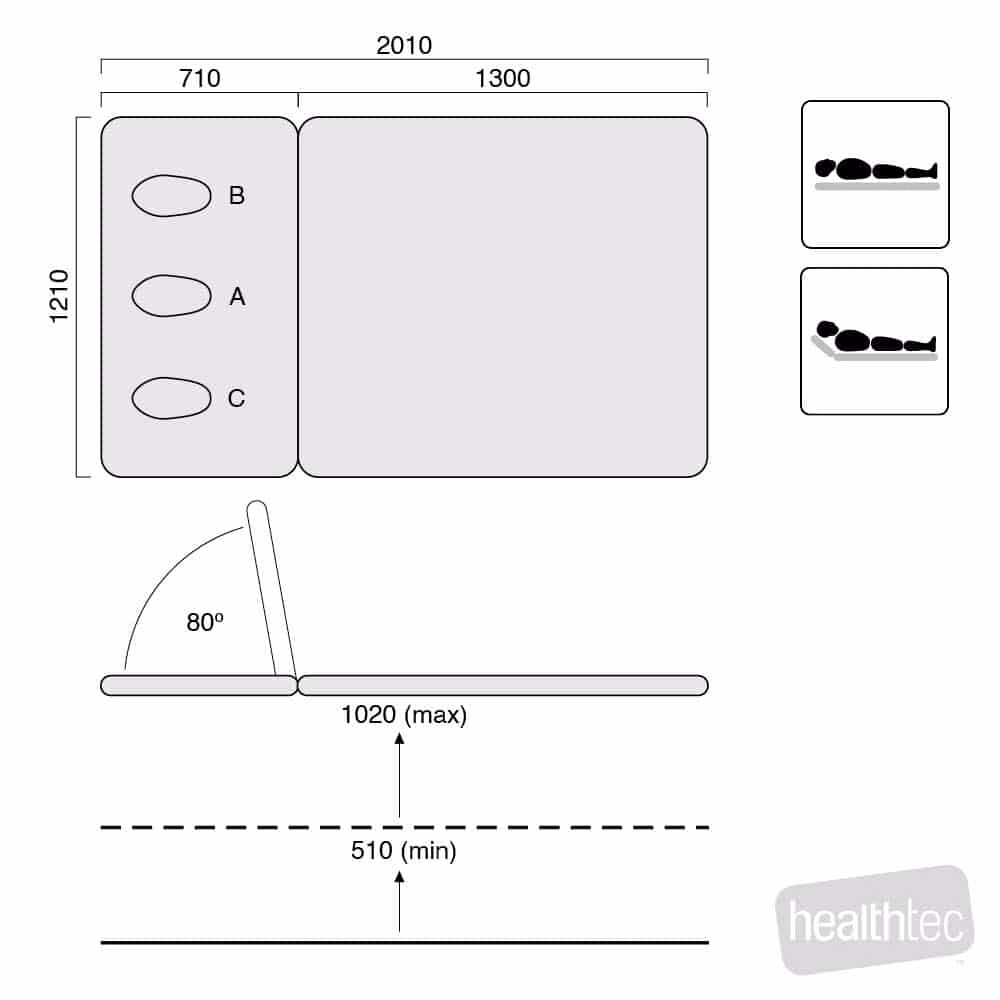

    With a treatment area of 1210 x 2010mm and low 510mm minimum height our Bariatric Neurological Bobath plinth provides excellent access for patients with limited mobility or for wheelchair transfers. The Back Rest can be manually adjusted from flat to +80º degrees while the electric height adjustment can be quickly set at the touch of a button reducing fatigue or back strain on the practitioner.
    Also available with a single section top if required (Product Code: 50071T12B).


    • 350kg Bariatric Lift Capacity
    • Electric Height Adjustment with Hand Switch
    • X-Frame Lift Action Minimises Pinch and Crush Points
    • 160mm Hoist Access
    • Heavy Duty Individually Lockable Castors
    • Durable Powder Coated Rust Resistant Steel Frame
    • High Quality Anti-microbial Vinyl and CFC Free Foam
    • Australian Designed and Manufactured
    • Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery
    Maximum Working Load400kg (Stationary)
    Maximum Lifting Capacity350kg (Moving)
    Minimum Working Height510mm
    Maximum Working Height 1020mm
    Table Width1210mm Standard (Optional 1010mm)
    Table Length2010mm
    Cushioning50mm Foam
    ControllerHand Switch
    Base/CastorX-Frame with Lockable Castors
    Back RestManually Adjustable +80º
