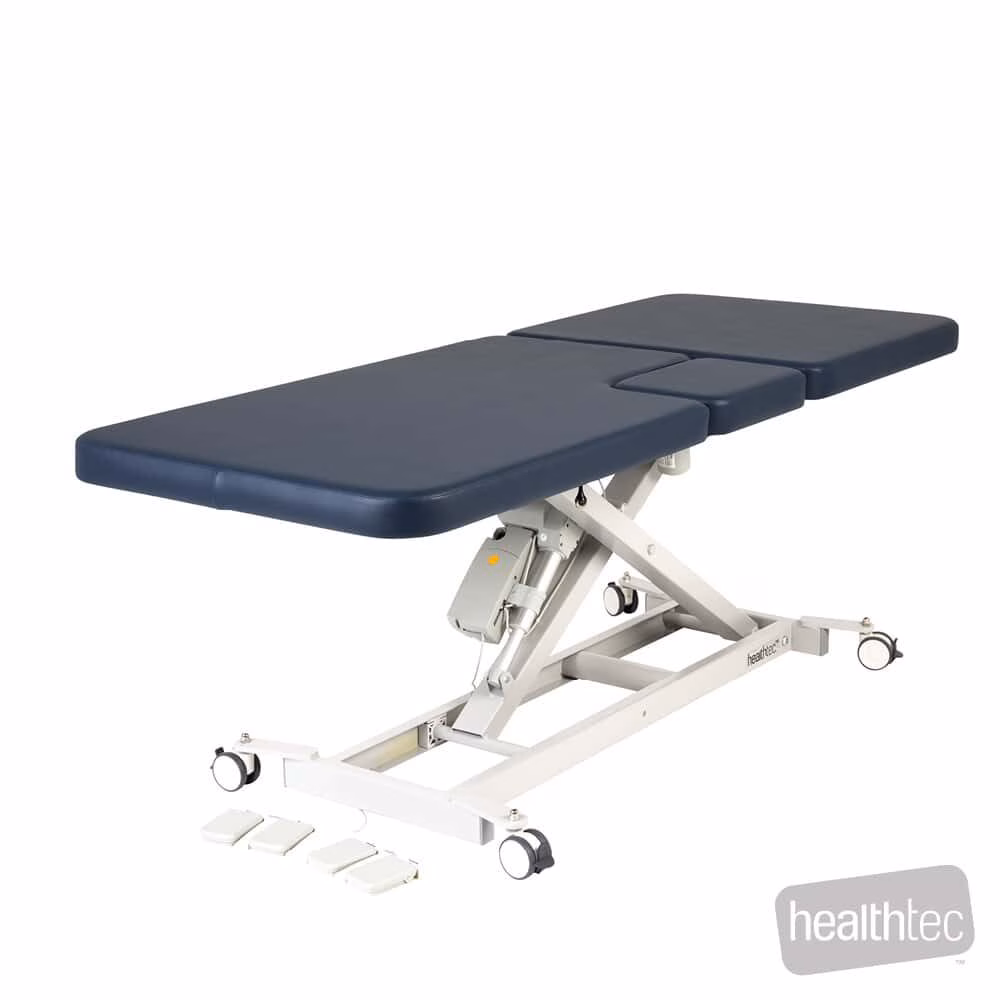

LynX Cardiology Table w/ Electric Back Rest Body Section Cut Out

Category:

Designed with special Cut-Out for cardiac examination to allow the operator to get the patient perfectly positioned for ‘Echo’ style transducer techniques. A 760mm Width option is also available with a larger Cut-Out area for increased patient access.

Standard Chair Pricing Only, see options and accessories below to customise your table.

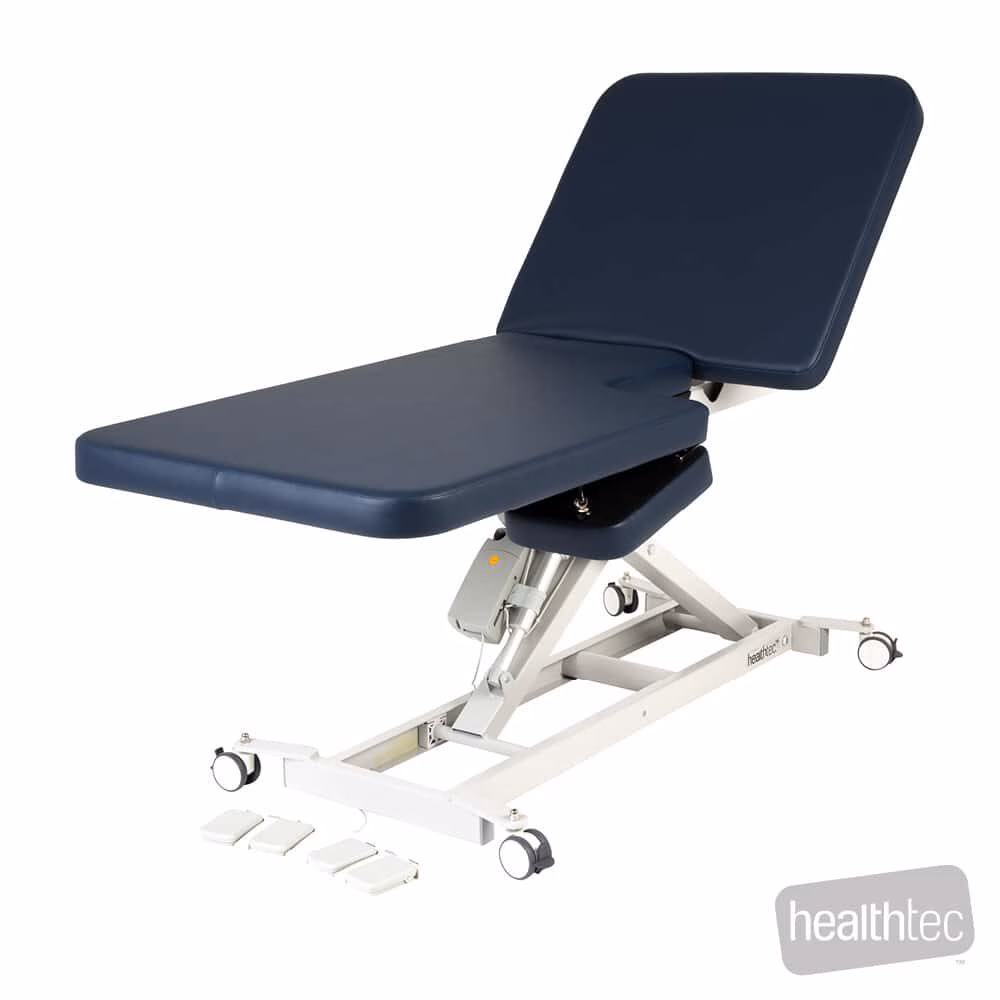

This section table is standard with an electrically operated Back Rest that can be adjusted from flat to +70º enabling a comfortable seated or semi-reclined position for the patient and fill section to allow the table to be a full examination table when required.

Features

  • Drop Down Fill Section
  • Electric Height Adjustment with Foot Switch
  • X-Frame Lift Action Minimises Pinch and Crush Points
  • Heavy Duty Individually Lockable Castors
  • Durable Powder Coated Rust Resistant Steel Frame
  • High Quality Anti-microbial Vinyl and CFC Free Foam
  • Available in 710mm or 760mm Widths Enabling for a Larger Cut Out
  • Australian Designed and Manufactured
  • Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery
Maximum Working Load400kg (Stationary)
Maximum Lifting Capacity250kg (Moving)
Minimum Working Height450mm
Maximum Working Height 950mm

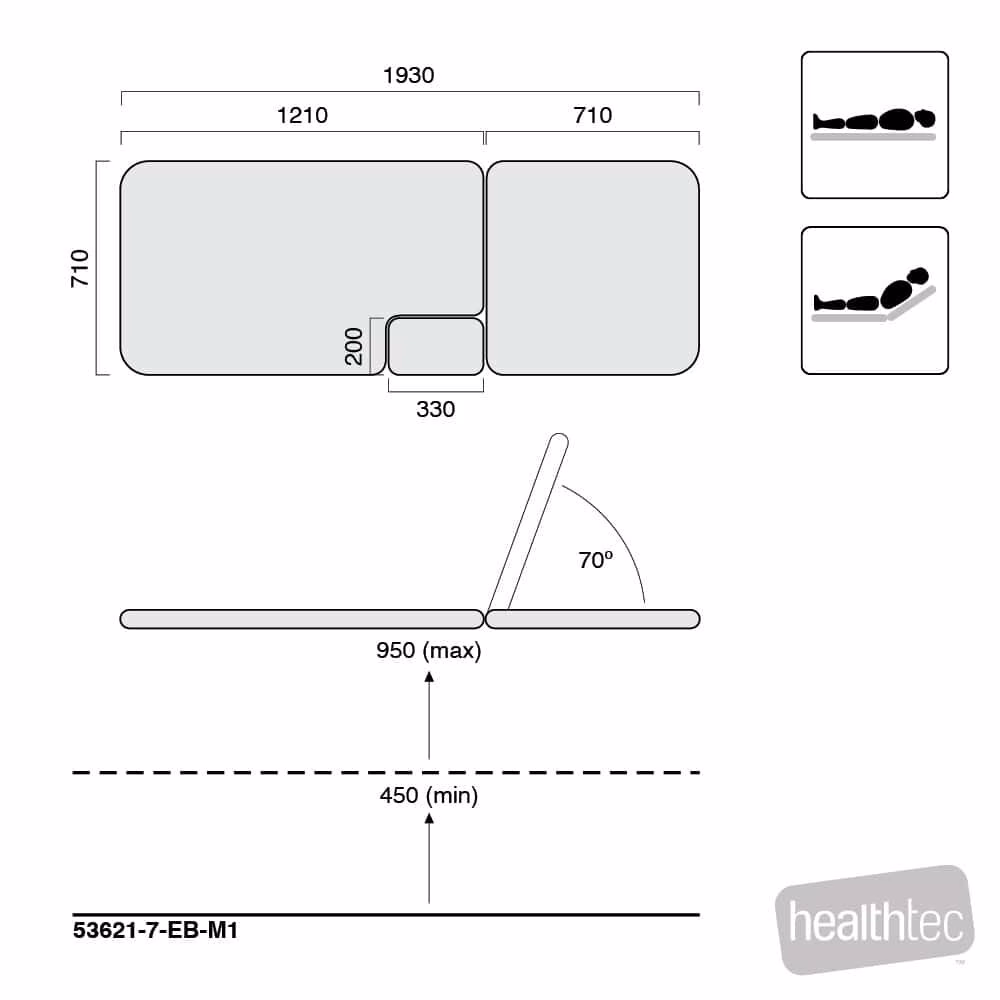

Table Width710mm (Available in 760mm Width for Larger Cut-Out – See Diagrams for Dimensions)
Table Length1840mm
Cushioning50mm Foam
ControllerFoot Switch
Base/CastorLynX X-Frame with Castors
Back RestElectronically Adjustable +70º
CutoutManually Opens and Held with Magnetic Catches
